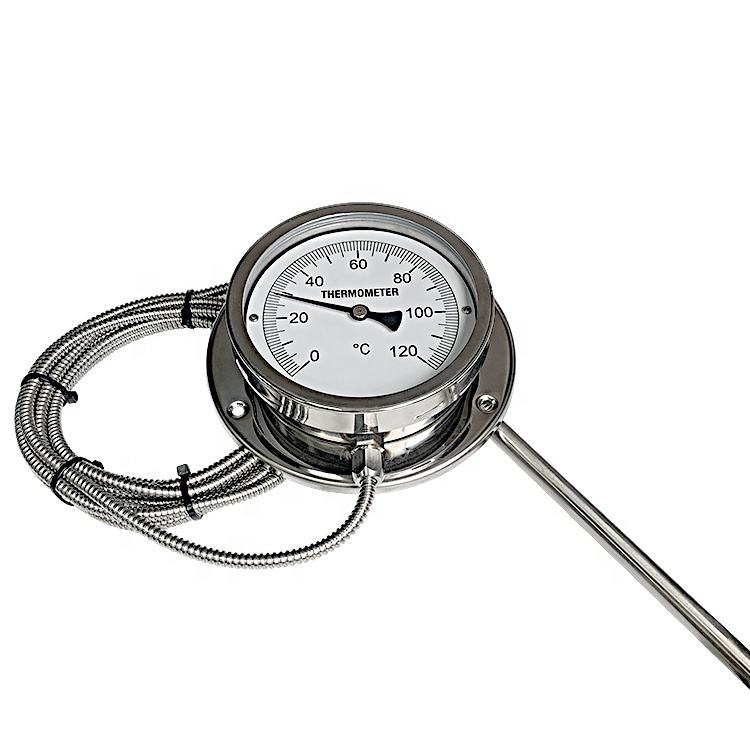

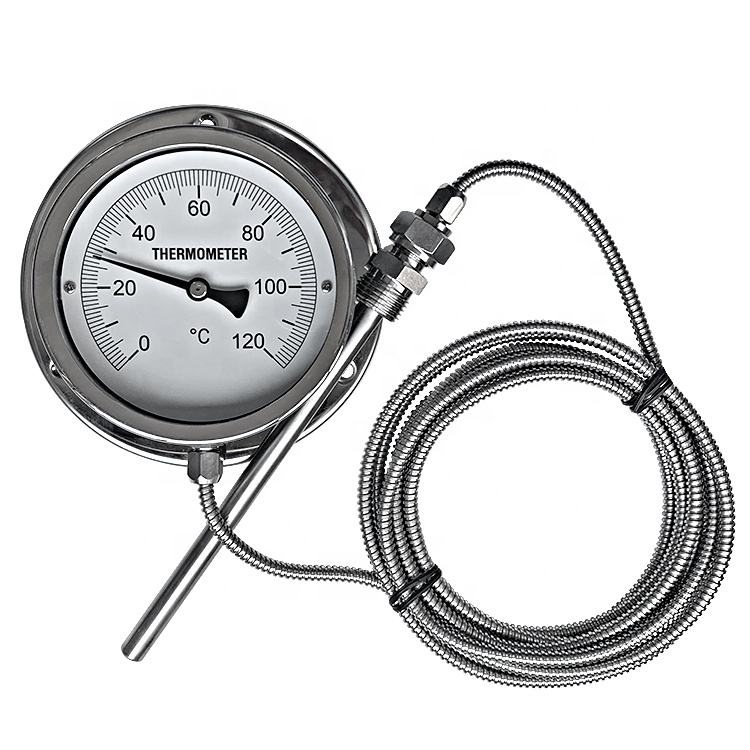

Introducing our high-precision industrial thermometer, expertly designed for remote temperature reading. Featuring a robust stainless steel 304 casing and a capillary tube connecting the case to the sensing bulb, this thermometer is filled with inert nitrogen gas for rapid temperature response. It excels in both direct and remote mounting applications while maintaining exceptional resistance to shock and vibration, making it a reliable choice for various industries, With a wide temperature measurement range from -40°C to 500°C, our thermometer is perfect for numerous applications, including cooling systems, HVAC/R, food processing, and more. As a leading manufacturer in China, our factory produces thermometers that meet the highest standards of quality and precision. Partner with us, one of the top suppliers in the industry, to ensure you have the best temperature measurement solutions for your needs

Product Description

Product Specifications

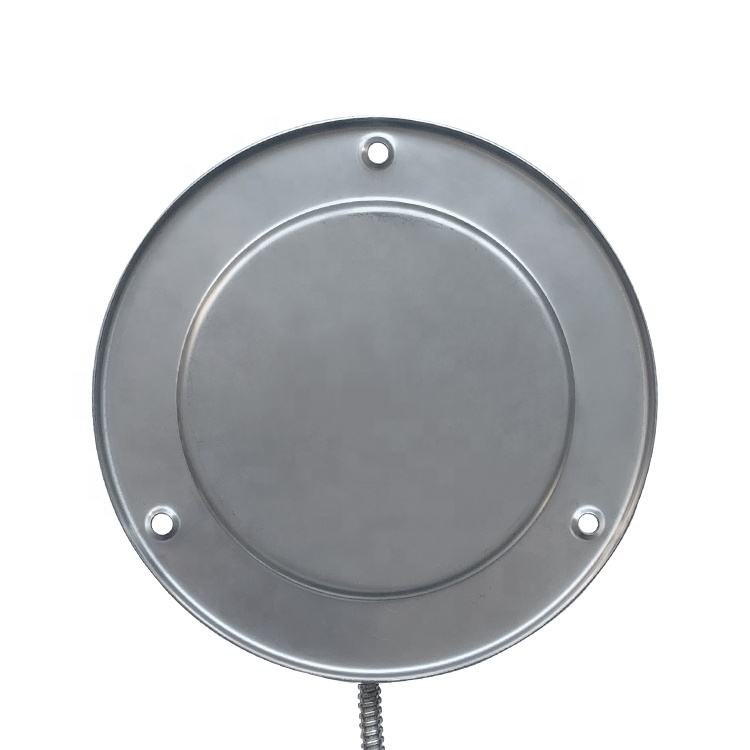

Case Stainless steel 304, with back rear flange
Size 100mm (4"), 150mm (6")
Ring (Cover) Stainless steel bayonet type
Window Toughened glass / Polycarbonate
Pointer Aluminum Alloy, Black Finished, Zero-adjustable

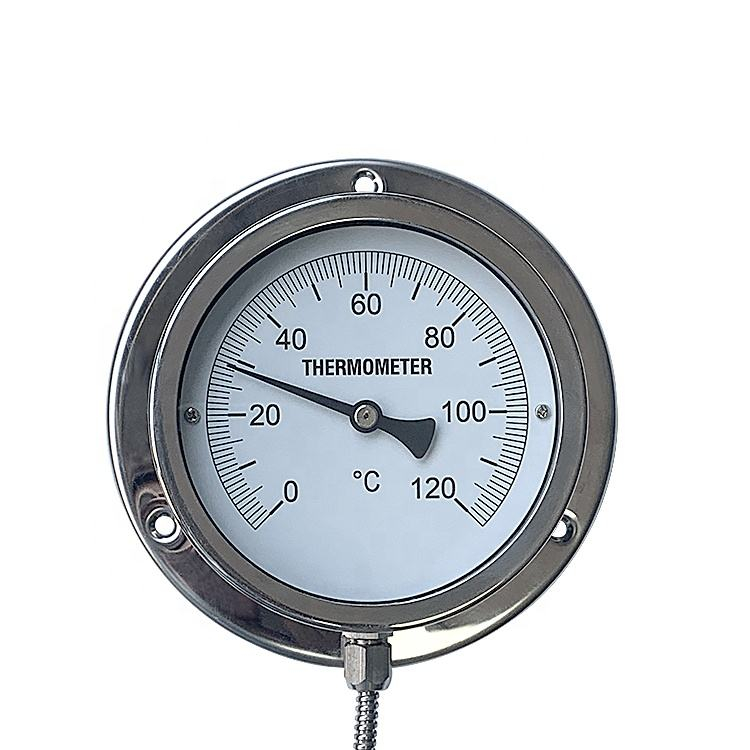

Dial Aluminum alloy in white background, can be in customize brand logo
Connection SS304 (or SS316 as per request), bottom mounting
Thread 3/8", 1/2"; PT(BSPT, ZG), BSP(G, PF), NPT etc as per request
Sensing Element Bi-metallic coil
Accuracy Class 1.6 as per EN 13190 (as standard), maximum class 1.0
Over Pressure Limit 110% of full scale value
Ambient Temperature -25°C to +65°C
Process Temperature Max. 400°C
Stem Material Stainless steel 304 (SS316 as per request)
Stem Bulb Diameter 6mm or 8mm; length from 50mm to 500mm
Capillary Line Length Stainless steel, length from 1 m to 10 m max
Protection IP65
Package Neutral Shakeproof package with sticker
Key Features
  • Compliance to EN 13190 standard
  • Wide selection of temperature ranges
  • All-stainless steel construction case and stem
  • Remote mount versions available
  • Capillary line length from 1 m to 10 m max
  • Protection to IP65
  • Zero adjustable pointer
  • Customized & OEM dial design
  • ISO & CE Certificate
Applications
Some industries where bimetallic temperature gauges are used are:
  • Chemical / Petrochemical Industry
  • Thermal / Hydro Power Stations
  • Pharmaceutical Industry
  • Food Processing & Hygienic Applications
  • Water Treatment Plants
  • Iron and Steel Industry
  • HVAC
  • Rubber Molding / Processing Plants
  • Hydraulics and Pneumatics
  • Sugar / Fertilizer Industries
  • Refineries
  • Cryogenics
Frequently Asked Questions
Q What is the maximum process temperature this bimetallic temperature gauge can handle?
This bimetallic temperature gauge can handle a maximum process temperature of 400°C, making it suitable for high-temperature industrial environments such as refineries and power stations.
Q What thread types are available for the connection?
The gauge supports multiple thread types including 3/8" and 1/2" in PT (BSPT, ZG), BSP (G, PF), and NPT standards. Custom thread specifications can also be arranged upon request.
Q What is the capillary line length range for remote mount versions?
For remote mount versions, the stainless steel capillary line is available in lengths ranging from 1 meter up to a maximum of 10 meters, providing flexibility for various installation configurations.
Q Is it possible to customize the dial with our own brand logo?
Yes, the aluminum alloy dial with white background supports full OEM and customized branding. You can have your own brand logo or custom markings printed on the dial as per your requirements.
Q What is the accuracy class of this temperature gauge?
The standard accuracy is Class 1.6 as per EN 13190. A higher accuracy of maximum Class 1.0 is also available, ensuring precise temperature measurement for demanding industrial applications.
Q What certifications does this bimetallic temperature gauge hold?
This gauge holds both ISO and CE certifications and complies with the EN 13190 standard, ensuring it meets international quality and safety requirements for use in various industrial applications worldwide.
