Precision-engineered monitoring solutions engineered for high-temperature and high-pressure boiler environments.
Industrial steam generation, thermal fluid heating, and commercial HVAC boilers operate under rigorous pressure and thermal loads. Maintaining process safety, energy efficiency, and operational compliance mandates the deployment of high-precision monitoring devices. Modern boiler pressure temperature gauges (frequently classified as thermo-manometers or dual-function gauges) serve as critical defense mechanisms against catastrophic thermal runaways, pressure surges, and structural metal fatigue.
As a specialized CE Certification Boiler Pressure Temperature Gauge Supplier & Factory, Huzhou Accuracy Instrument Co., Ltd. aligns its manufacturing workflows with European Directives including the Pressure Equipment Directive (PED 2014/68/EU), EN 837-1 for pressure gauges, and EN 13190 for bimetallic thermometers. CE compliance certifies that instruments withstand overpressure limits, thermal shocks, and mechanical vibrations without loss of calibration or structural failure.
Ensures pressure containment structures—including Bourdon tubes, process connections, and instrument cases—comply with stringent safety coefficients under high temperature and steam loads.
Guarantees Bourdon tube accuracy classes (±1.0%, ±1.6%, ±0.5% full scale), defining strict hysteresis limits and cyclic fatigue endurance over 100,000 pressure cycles.
Governs bimetallic helix stem responsiveness, immersion depths, and thermal isolation barriers required to deliver accurate readings in saturated and superheated steam environments.
Integrating pressure and temperature sensing into a single process connection reduces nozzle penetrations on boiler pressure vessels, minimizing leak pathways and installation costs. Understanding the internal physics and metallurgical composition of these gauges highlights their operational superiority in demanding environments.
For pressure ranges up to 60 bar, seamless 316L Stainless Steel or Phosphor Bronze C-shaped Bourdon tubes are utilized. Under internal pressure, the tube cross-section attempts to assume a circular shape, causing the free end to uncoil. This minute displacement is transmitted through a high-precision, low-friction quadrant-and-pinion movement to drive the pointer across the dial face. Laser micro-welding prevents thermal stress cracking at the process connection joint.
Temperature measurement relies on a helically wound bimetallic strip composed of two metals with disparate thermal expansion coefficients (e.g., Invar and Stainless Steel). As heat transfers from the boiler medium through the thermowell stem, differential expansion rotates the helix, turning the temperature pointer on an concentric outer or inner dial scale. For remote readouts up to 10 meters, liquid or gas-filled capillary lines transfer volumetric expansion dynamically.
| Technical Parameter | Standard Commercial Grade | Industrial Heavy-Duty Grade (Huzhou Accuracy) |
|---|---|---|
| Accuracy Class (Pressure) | Class 2.5 (±2.5%) | Class 1.0 / Class 1.6 (±1.0% / ±1.6% EN 837-1) |
| Accuracy Class (Temperature) | Class 2.0 (±2.0%) | Class 1.0 (EN 13190) |
| Wetted Parts Material | Brass / Copper Alloy | AISI 316L SS / Monel 400 / Corrosion Ceramic |
| Dial Range Options | 0-10 Bar / 0-120°C | 0-140 Bar (2000 PSI) / -40°C to +600°C Dual Scale |
| Ingress Protection | IP44 / IP54 | IP65 / IP67 (Hermetically Sealed, Glycerin/Silicone Fillable) |
| Safety Features | Standard Plastic Lens | Laminated Safety Glass, Solid Front Phenolic Case, Blow-out Back |
Huzhou Accuracy Instrument Co., Ltd. is professionally engaged in the development, sales, and service of industrial mechanical pressure gauges, bi-metal thermometers, SF6 manometers, and advanced pressure sensors. Products are widely used in various demanding applications such as Mechanical Engineering, Chemical Engineering, Food Industry, Pharmaceutical Processing, and high-technology electric appliances.
Established over two decades ago, our pressure gauge manufacturing facility spans 3,000 square meters, equipped with automated production lines, laser welding technology, and rigorous quality control systems. As an industry leader, we integrate mechanical innovation with precision engineering to deliver zero-leak measurement solutions for global clients.
Focuses on advanced material innovation, smart sensor integration, and compliance with international standards (e.g., ISO, API, CE, ATEX). Engineers continuous improvement in pressure element longevity and anti-vibration damping.
Utilizes automated assembly lines, robotic spot welding, and automated laser calibration technologies to ensure product durability, exact dial alignment, and uniform accuracy across mass production batches.
Provides 24/7 technical support, field selection consultation, and customized OEM solutions across 30+ countries, serving global EPC contractors, boiler manufacturers, and industrial distributors.
We have long followed the concept of "Reasonable Price, Accurate Delivery, Good Quality" and several business management models to keep our production quality consistently above required benchmarks under ISO 9001:2008 and ISO 17025 certifications. Our testing laboratory conducts 100% pressure cycle testing, thermal shock testing, and environmental seal simulations, backing our reputation for "zero-leak" performance in extreme conditions with a comprehensive one-year replacement warranty.
Boiler pressure temperature gauges are deployed in diverse operational ecosystems worldwide. Differences in local regional codes, working media, and environmental ambient conditions dictate specialized gauge configurations.
High-pressure utility boilers require solid-front phenolic gauges with blow-out backs and 316L stainless steel Bourdon tubes. Devices monitor steam drum pressure and superheater outlet temperatures. Syphon tubes (pigtail or coil syphons) are mandatory to isolate the mechanical gauge movement from direct high-temperature steam, creating a condensate seal that protects thermal calibration integrity.
In municipal district heating and commercial building hydronic loops, dual-scale thermo-manometers (0-6 bar / 0-120°C) provide instant visual diagnostics for maintenance technicians. These units feature back or bottom process connections for fast mounting on boiler headers, expansion tanks, and heat exchangers.
Aggressive processing environments containing sour gas (H2S), corrosive vapours, or heavy acids require specialized instruments like ceramic pressure transmitters or diaphragm-sealed bimetal thermometers. ATEX/IECEx explosion-proof electrical contact gauges automate emergency high-pressure shutoff valves when safety thresholds are breached.
Clean steam boilers supplying sterilization autoclaves and clean-in-place (CIP) food equipment demand stainless steel gauges with sanitary Tri-Clamp connections, electro-polished surfaces (Ra < 0.4 µm), and FDA-approved fill fluids (food-grade glycerin or mineral oil) to eliminate contamination risks.
The industrial measurement sector is undergoing a digital transformation. While traditional mechanical Bourdon gauges remain the baseline safety backup, modern boiler operations are adopting hybrid sensing technologies that merge mechanical robustness with digital Industrial Internet of Things (IIoT) capabilities.
Integrating solid-state thin-film pressure sensors directly into mechanical gauge blocks. This allows local visual dial readings for field technicians while simultaneously transmitting 4-20mA HART or RS-485 Modbus RTU telemetry to centralized PLC/SCADA control networks.
As green hydrogen replaces fossil natural gas in modern boiler burners, pressure components must combat hydrogen embrittlement. Future instrument roadmaps feature specialized gold-plated diaphragms and 316L SS alloys engineered for ultra-low molecular size hydrogen containment.
Implementation of micro-embedded accelerometers and acoustic leak sensors within gauge casings. Gauges actively analyze burner pulse frequencies and micro-vibrations, alerting engineers to impending diaphragm fatigue or scale build-up before system failure occurs.
As an OEM-focused manufacturer, Huzhou Accuracy Instrument Co., Ltd. provides comprehensive engineering modifications tailored to regional boiler codes, specific operational fluids, and customer brand requirements.
We provide dual-unit dial printing (PSI/Bar, kPa/MPa, °C/°F), color-coded green/red safety zones customized to client operational limits, customer logo integration, and specialized anti-glare anti-UV dial coatings for outdoor boiler installations.

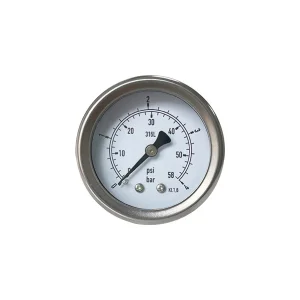

For high-vibration environments like diesel marine boilers or reciprocating pump systems, gauges are supplied with liquid fillings (99.5% pure Glycerin for standard applications, dynamic Silicone Oil for extreme -40°C to +200°C ambient thermal swings).
Engineered connections include NPT, BSP, BSPT, G1/2", M20x1.5, or customized flange mounts. Extended thermowell stems (up to 500mm immersion length) with cooling neck fins isolate high-temperature boiler walls from delicate dial electronics.

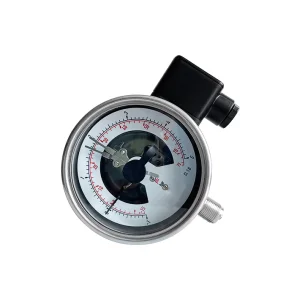

Single or double magnetic snap-action contacts (SPDT/DPDT) allow direct control of external alarm horns, burner cut-off relays, or feed pumps when preset pressure or temperature limits are crossed in safe or ATEX hazardous zones.
